YASKAWA AC DRIVE

Product Description

1 Electrical Ratings Input  Output

 Input

Voltage Mostly 3phase 380480 V AC 15  allowed

Frequency 50  60 Hz nominal

 Output

Output Frequency Range typically 0  400 Hz userset

Output Current  Power Depends on specific drive model and rating  drives are available for small motors to large industrial motors

Overload Ratings

Normal duty 120  for 60 s

Heavy duty 150  for 60 s

 2 Control Methods

Yaskawa drives support several control schemes depending on series

Vf Control VoltageFrequency Basic speed control mode

Openloop Vector Control Better torque  speed performance without encoder

Flux Vector Control Enhanced performance with or without sensors

Encoder Feedback On higher models for precision control A1000 and up

Typical control range

Openloop vector up to 1100 speed range

Vf 140 speed range

PM open loop 110 speed range

 3 Performance Characteristics

 Torque  Frequency

Starting Torque 150  at low frequency in many models can be higher on vector drives

Carrier Frequency Adjustable  can range from 2 kHz up to 15 kHz in some series

Speed Response Good response in vector modes several Hz feedback

 Protection  Builtin Safety

Protections Overcurrent overunder voltage overload overheating shortcircuit and more are standard on most Yaskawa drives

Braking Many models include builtin braking transistors some have optional braking resistors

Ambient Typically 10 C to 50 C without derating

 4 Communications  IO Typical

Digital and analog inputs for control and feedback number varies by model

Some models support RS485 Modbus and optional fieldbus modules can be added in advanced series

PC configuration tools and mobile apps available for setup on newer series like GA700

Key Series Overview

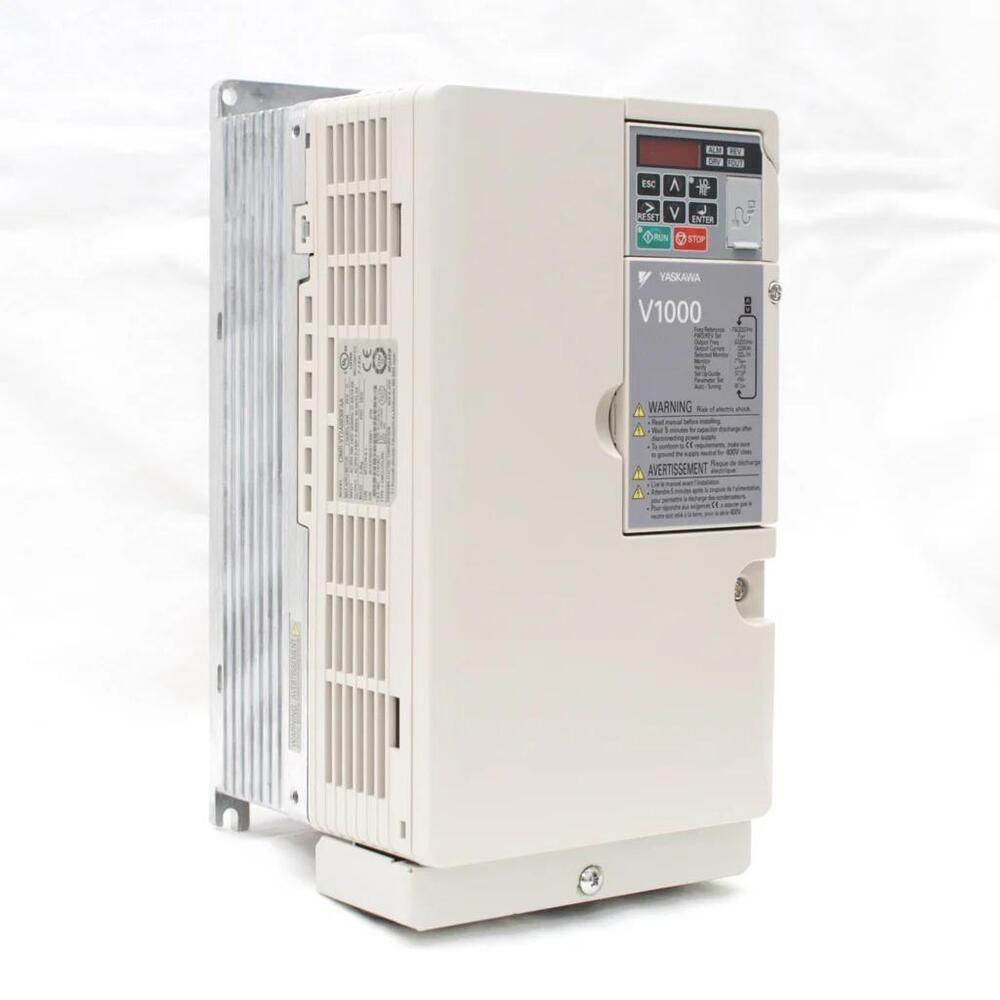

Yaskawa V1000 AC Drive Compact Vector Control Drive  Compact vector drive with good performance for general industrial motors Supports openloop vector and Vf control output up to 400 Hz

YASkawa Inverter V1000 400V VT  Another V1000 variant with VTCT control modes and good power handling

YASKAWA J1000 CIMRJTBA0003BAA AC Drive  Smaller general purpose drive ideal for light industrial and compact machines

U1000 Yaskawa VFDs  Budgetfriendly Yaskawa drives suitable for varied applications

CIMRAC4A0018FAA Yaskawa  Larger capacity industrial drive for 3phase motor speed control

 6 Typical Applications

Yaskawa AC drives are widely used for

Pumps fans compressors conveyors

Machine tools packaging equipment

HVAC systems

Cranes and hoists especially higher series

Process automation and precision speed control

 Notes for Specifying a Yaskawa Drive

When choosing a Yaskawa AC drive match

 Input supply voltage eg 380480 V 3phase or 200240 V variants

 Motor rated power kWHP and current

 Duty type normal vs heavy duty

 Control method Vf vs vector

 Required IO and communication
